8.5 / 6.5 ton Electric Axle

Need more passenger comfort in your city buses?

Silex’s Electric Axles grant it!

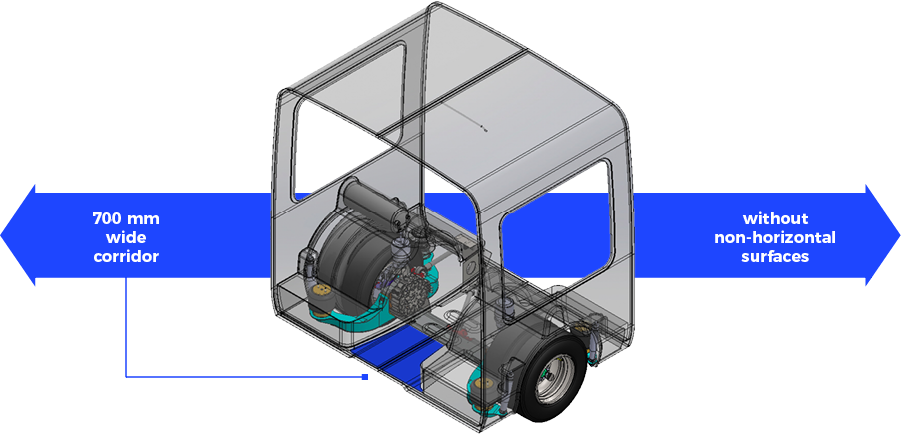

  • extra large passenger space with 700 mm wide corridor
  • low floor in full length of the bus

Silex Electric Axles – optimised to 10-13 ton gross weight vehicles

State-of-the-art composite or aluminium structure 12.5m length buses weight only 13 ton, while the same length conventional steel structure buses weight 18-19ton. Silex’s electric axle family targets the light weight vehicle segment, by offering driven electric axles for 8.5 ton and 6.5 ton axle load. Silex Electric Axles have been optimised to 10-13 ton gross weight zero emission full electric / hybrid vehicles, both technically and economically.

50% cost saving in 10 years of operation

Compared to alternative technical solutions (central motor, gearbox, drive shaft, differential, axle shafts):

  • 40% less mass
  • higher efficiency, thus lower operating costs
  • Lower initial cost

Silex’s electric axles are available either as parts, or in a package, integrated with the vehicles’ control system.

740mm wide corridor without non-horizontal surfaces! 740mm wide corridor without non-horizontal surfaces!

The Silex Electric Axle specially designed for electric and hybrid vehicles in the 8,5 or 6,5 tons/axle category:

  • 8 - 13 m light weight buses,
  • conventional midi-buses
  • small trucks carrying maximum 6t load,
  • heavy fork lifters,
  • mid-size agricultural loaders.

The Silex Electric Axle provides an unbeatable solution to build in length low-floor buses since there is

  • no central driving motor – both in-wheel motors are integrated in the axle,
  • no gearbox, no propeller shaft, no differential – they are solved electronically.

Up to 300 km/day without recharging the batteries by using Silex Electric Axle

  • easy to integrate into light weight vehicles (composite, aluminum)
  • 40% less weight of the axle
  • more space and weight for batteries

Sustainable mobility

Silex is developing* its electric axle family as an integrated power-train module to support sustainable mobility, and to contribute to the zero emission vehicles and the very latest, light weight electric vehicles development.

Max load 65 or 85 kN Max load 65 or 85 kN

The development project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 739280

European Commission

* The development project is in progress. The Silex Electric Axle working prototype will be available by 2018 Q3.
